중국 산수화 속 초가집을 형상화한 철근 설치물[Boundless Theater of Egret Bay] - Beijing Guanzhuan Landscape Planning and Design Institution

Egret Bay art museum is located in Rizhao, Shandong Province. It is located at the east foot of Wulian mountain, a famous Buddhist mountain. Mr. Su Dongpo visited the mountain many times during the reign of the governor of Mizhou, and left a good sentence of "its beauty does not reduce the wild geese". The construction concept of the town is to "reshape the relationship between man and nature". On a land area of 10000 mu, it combines the aesthetic space with the natural landscape and various business forms. After more than ten years of construction, it seems to be an ideal place for people to live. In the early spring of this year, Mr. Xu qunde, the founder of egret Bay, went on an outing with me. I talked to him about a building I had built before. There was a process photo. In the picture, there was a woven curved steel mesh floating lightly in the woods hidden by mist. Seeing this picture, Mr. Xu immediately said that there was a place in egret bay where one could be woven, which was located in the cherry blossom Valley mentioned above. Mr. Xu wants to build a building in the center of Cherry Valley as a place for music, dance, drama, and other artistic activities. He described to me that his ideal state is "nature is the best", the cherry tree is the main body, and the architecture is hidden in it. The two form a perfect relationship. As I understand it, this building is like a small thatched canopy hidden in deep mountains and lakes in Chinese landscape painting, facing the landscape with an elegant attitude, and taking nature as the soul.

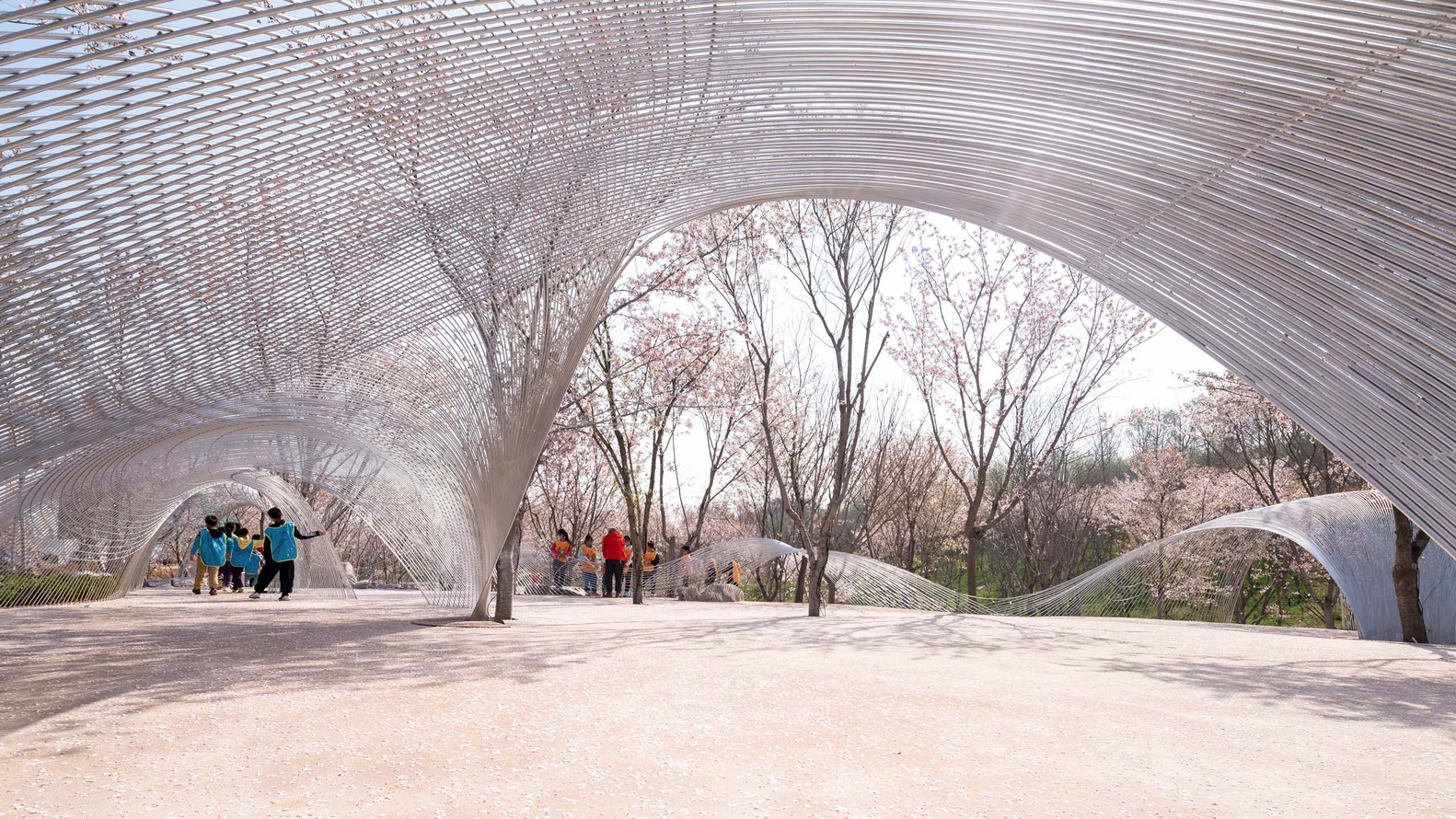

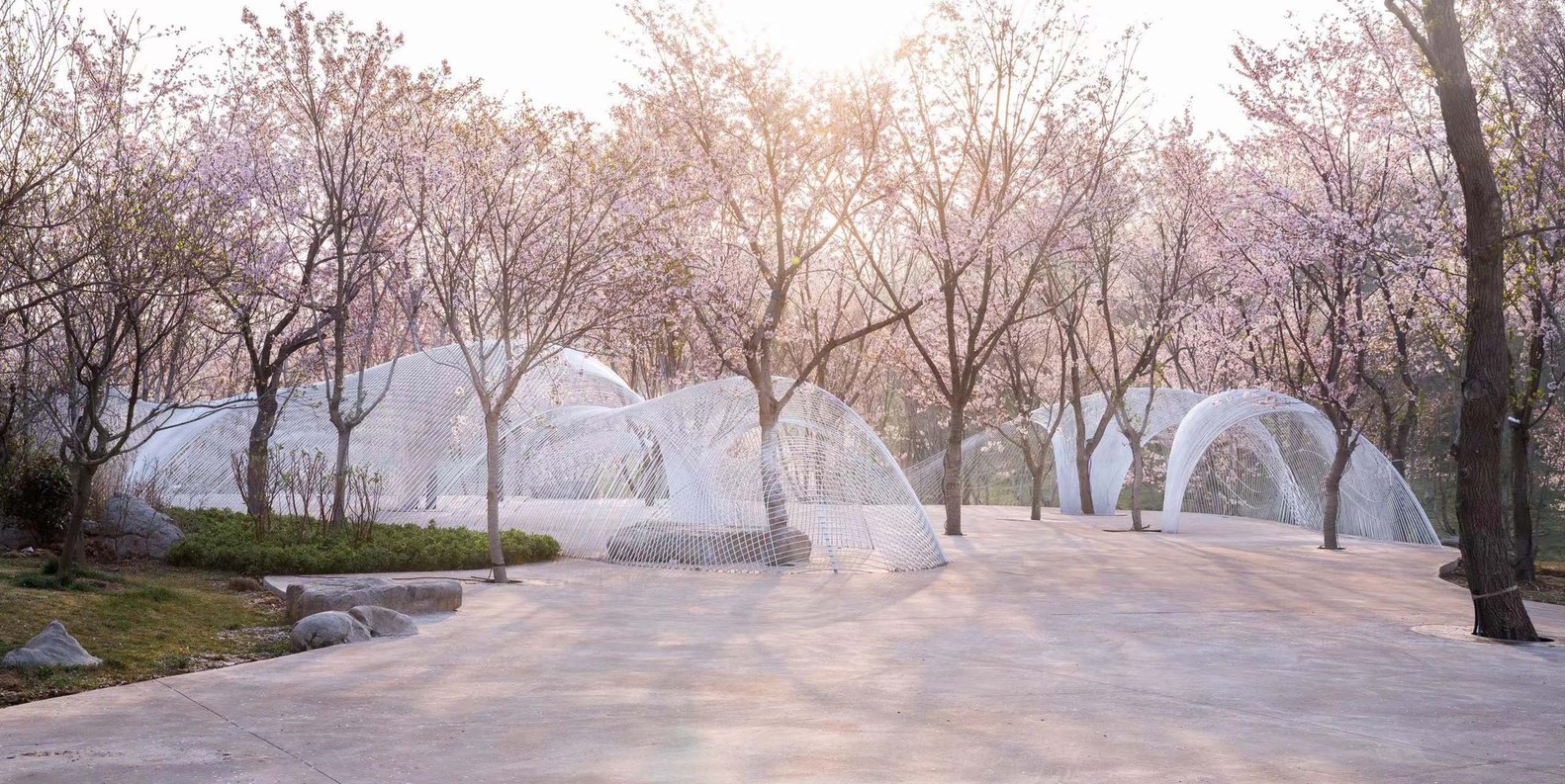

We also agreed that the steel mesh in the picture should evolve into a permanent building. People can not only swim but also watch the blooming cherry blossoms through the mesh gap. However, everything is vague and unknown. What kind of architecture will be produced in a randomly planted cherry forest? In my imagination, the theater should be a streamlined body, a surrounding space, in which people can shuttle freely. I imagine that when cherry blossoms are blooming all over the sky, heaven and earth, cherry trees, the theater will accommodate me, cherry trees are the main, the theater is the second, and I am the free element in this scene. For example, in the picture of residence in Fuchun mountain, the mountains and forests are extended, the residence is secluded, and the little characters are free spots. This is my favorite poetic picture.

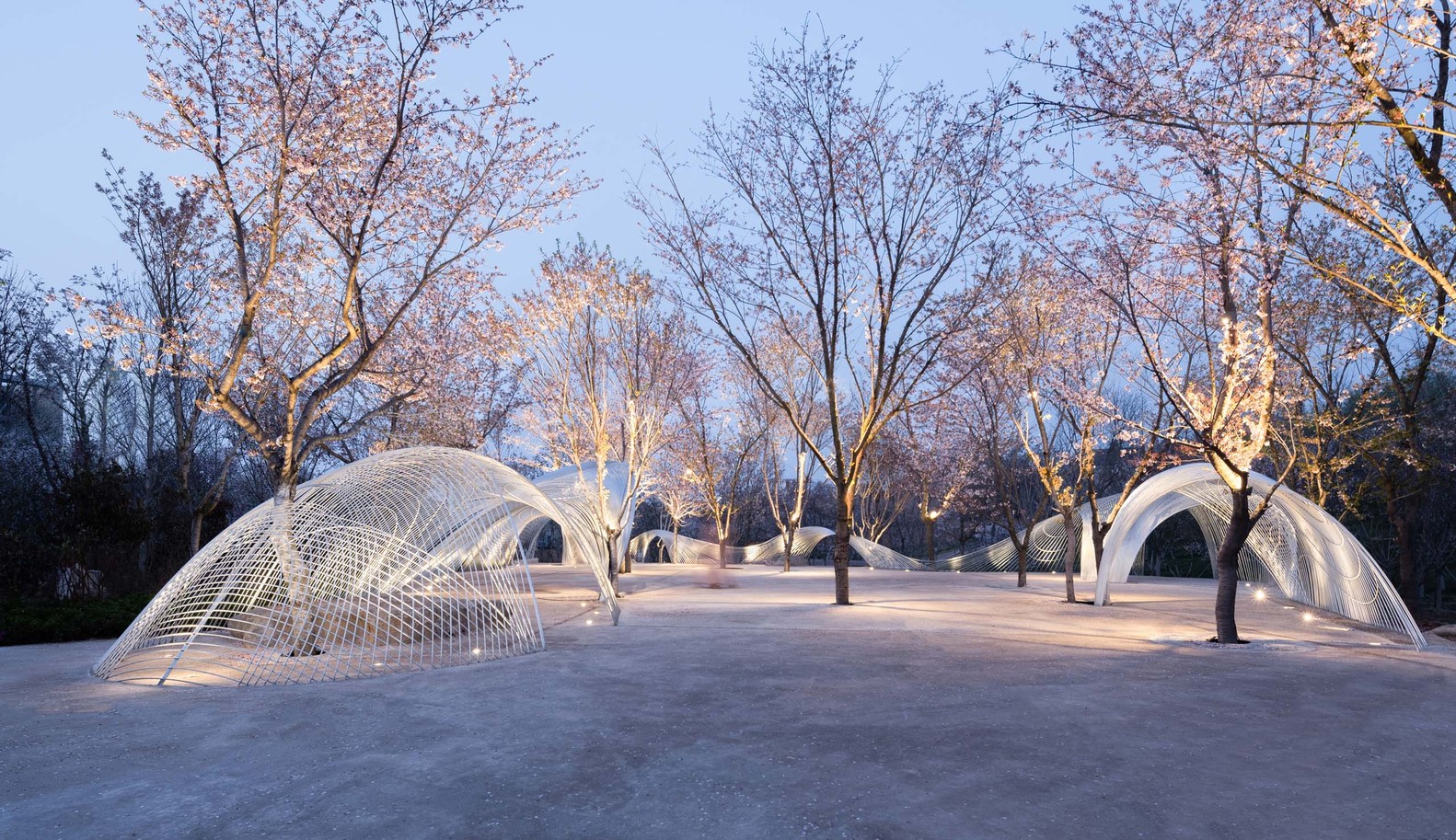

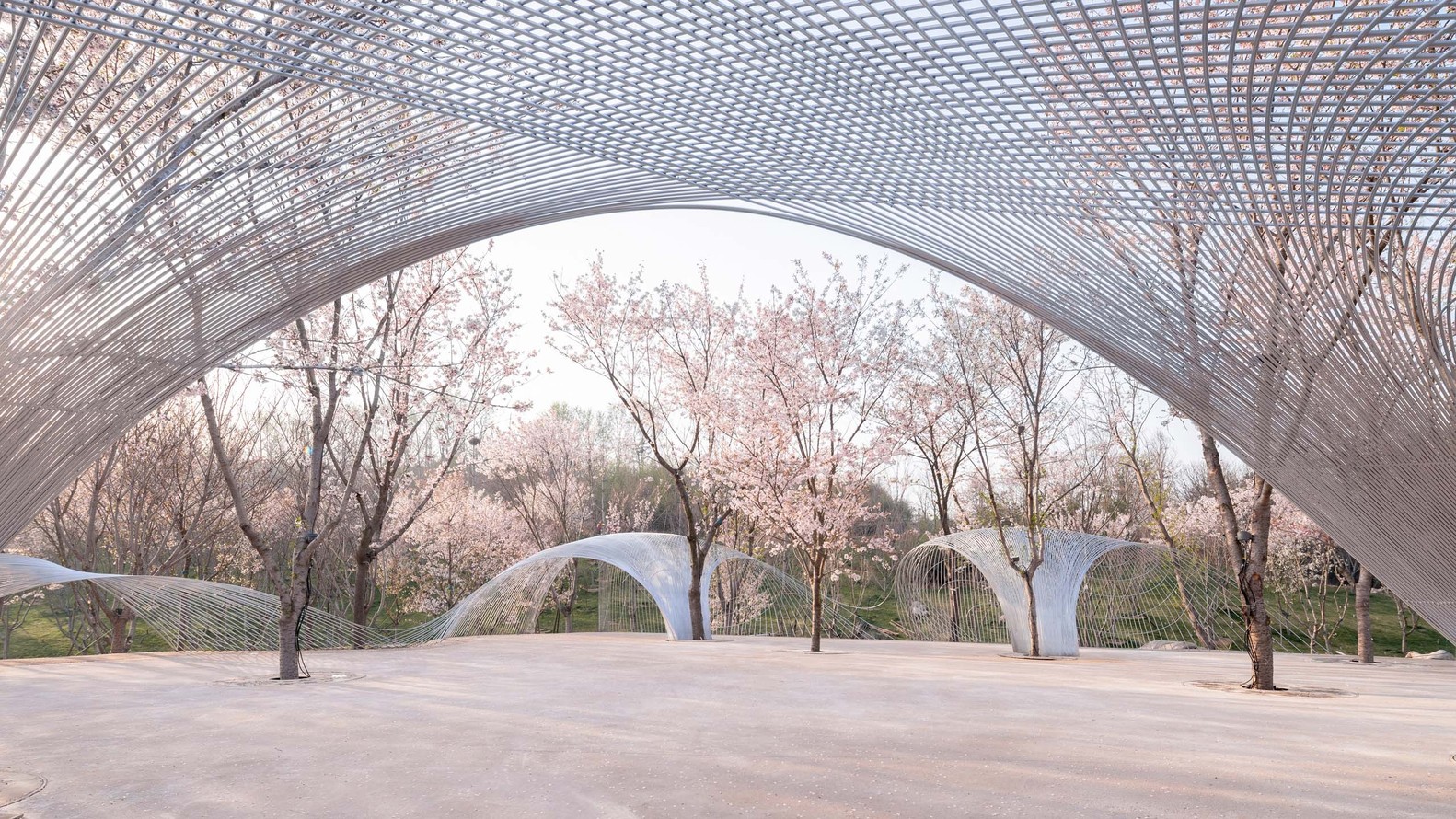

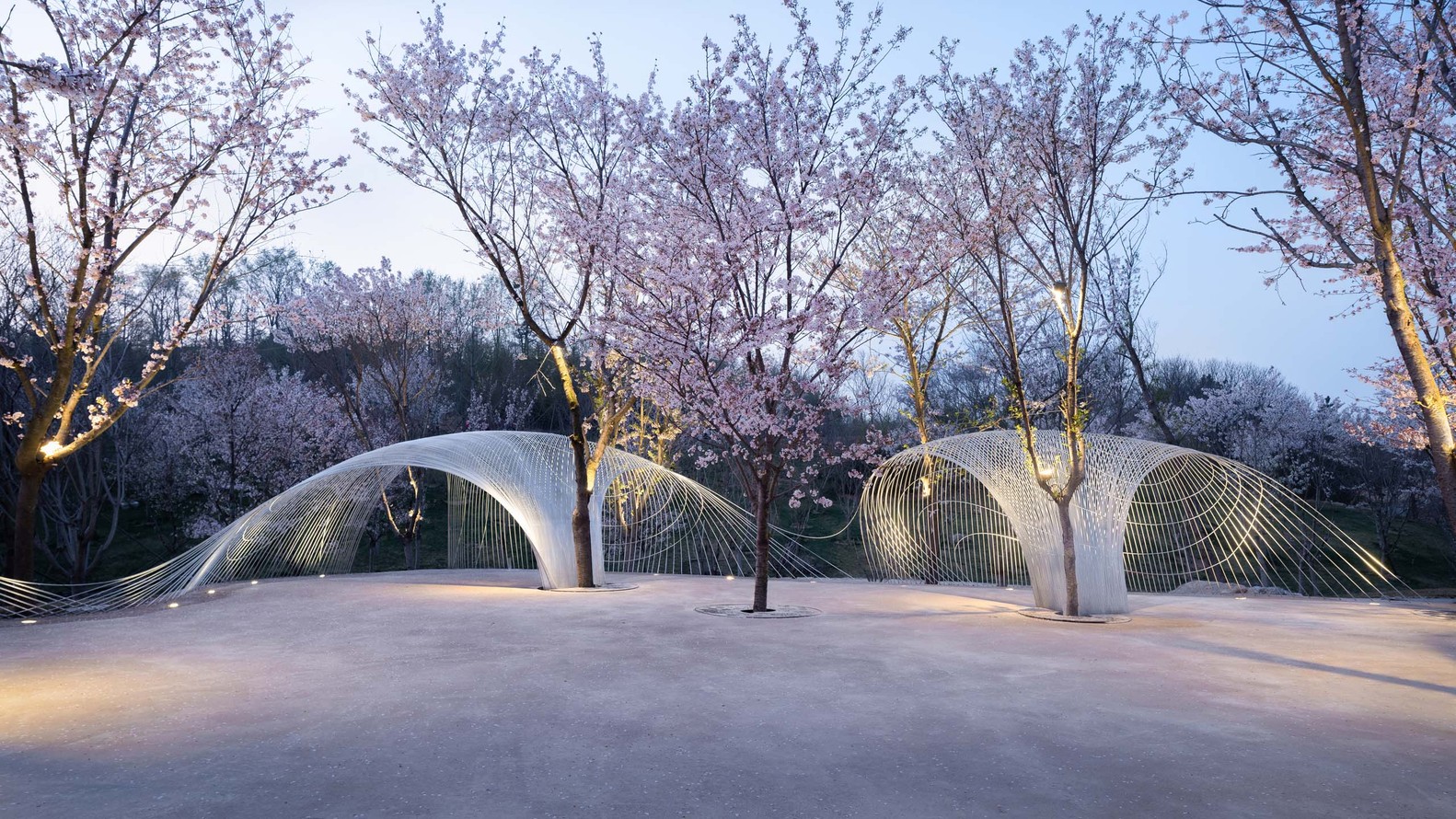

The eastern part of the stage connects the entrance in the other direction and evolves into a changing corridor between four cherry trees. There are two main cherry trees opposite the main stage. Taking the tree as the axis, they form two fans, which are very similar to the wings of birds. The west of the site is the main entrance. As a corresponding, a semicircular dome was carefully woven in the east of the site. After five days, three workers demolished it three times and finally completed it. The dome is independent and beautiful. However, looking at the whole site, it seems too crowded, so Luo Dan cut his hand and reluctantly demolished it.

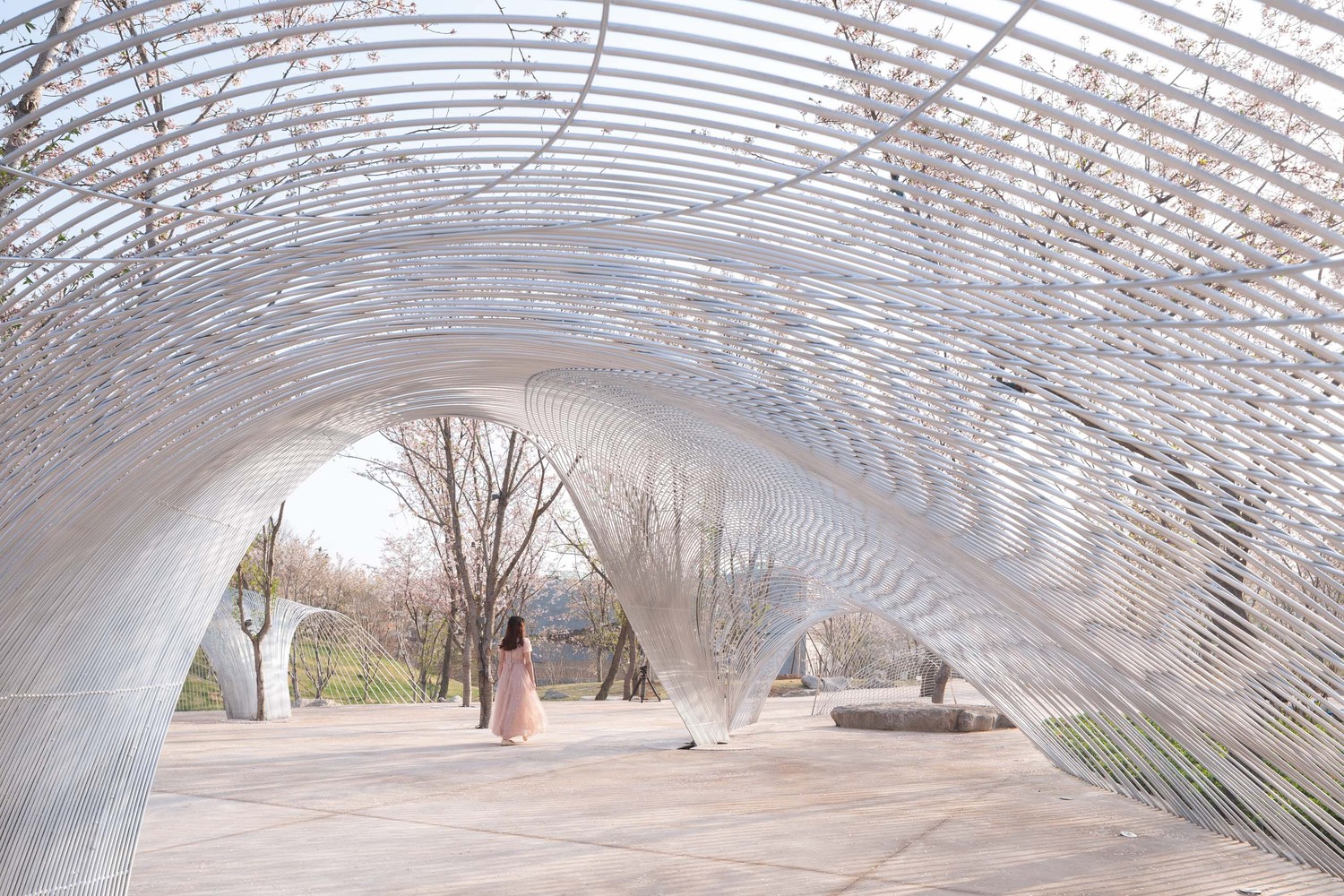

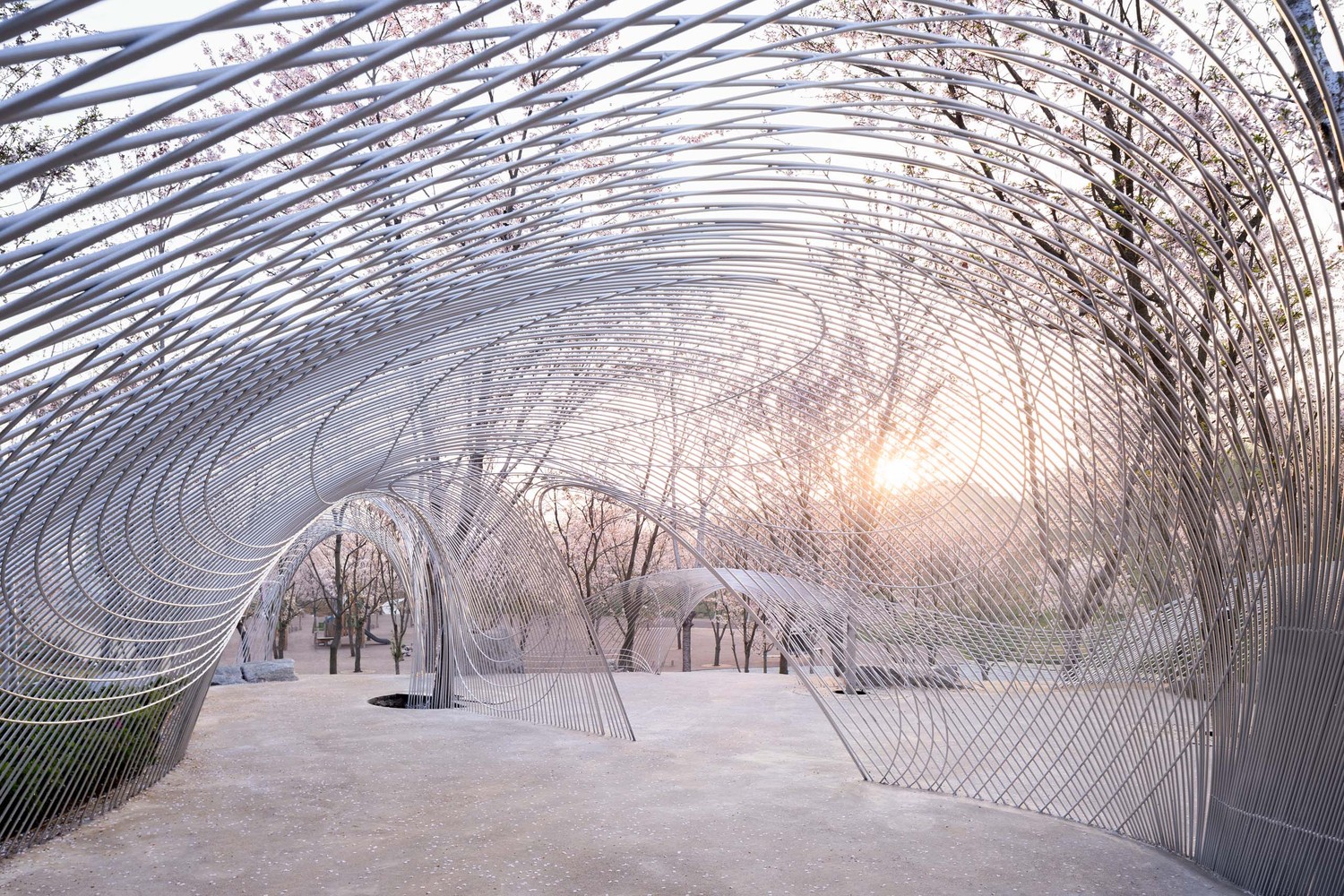

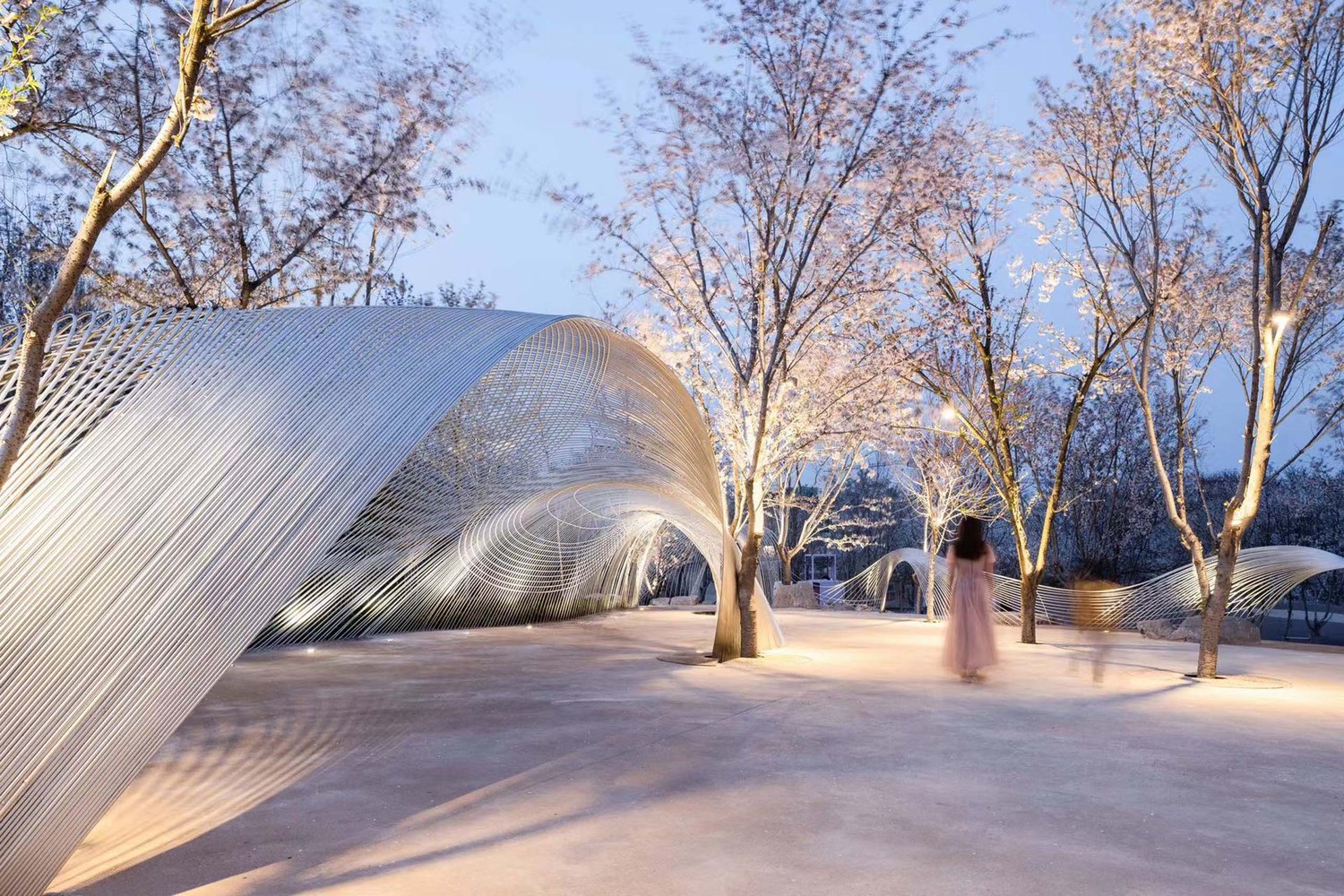

After the demolition, it was decided to make a streamlined and decent to connect the north main stage and the south wing stage. It should be a standing curved wall, but the structure is very difficult because, from the beginning, it was decided that all the steel bars are curved, and one end grows from the ground and the other end enters the ground. It can not rely on a vertical support, so there is no straight line in the whole building. Therefore, a steel bar is twisted in the opposite direction on both sides to make it stand up. The curved wall is low and the connecting surface is long, so two different shapes are adopted. The coordination of structure and form is quite brain-burning.

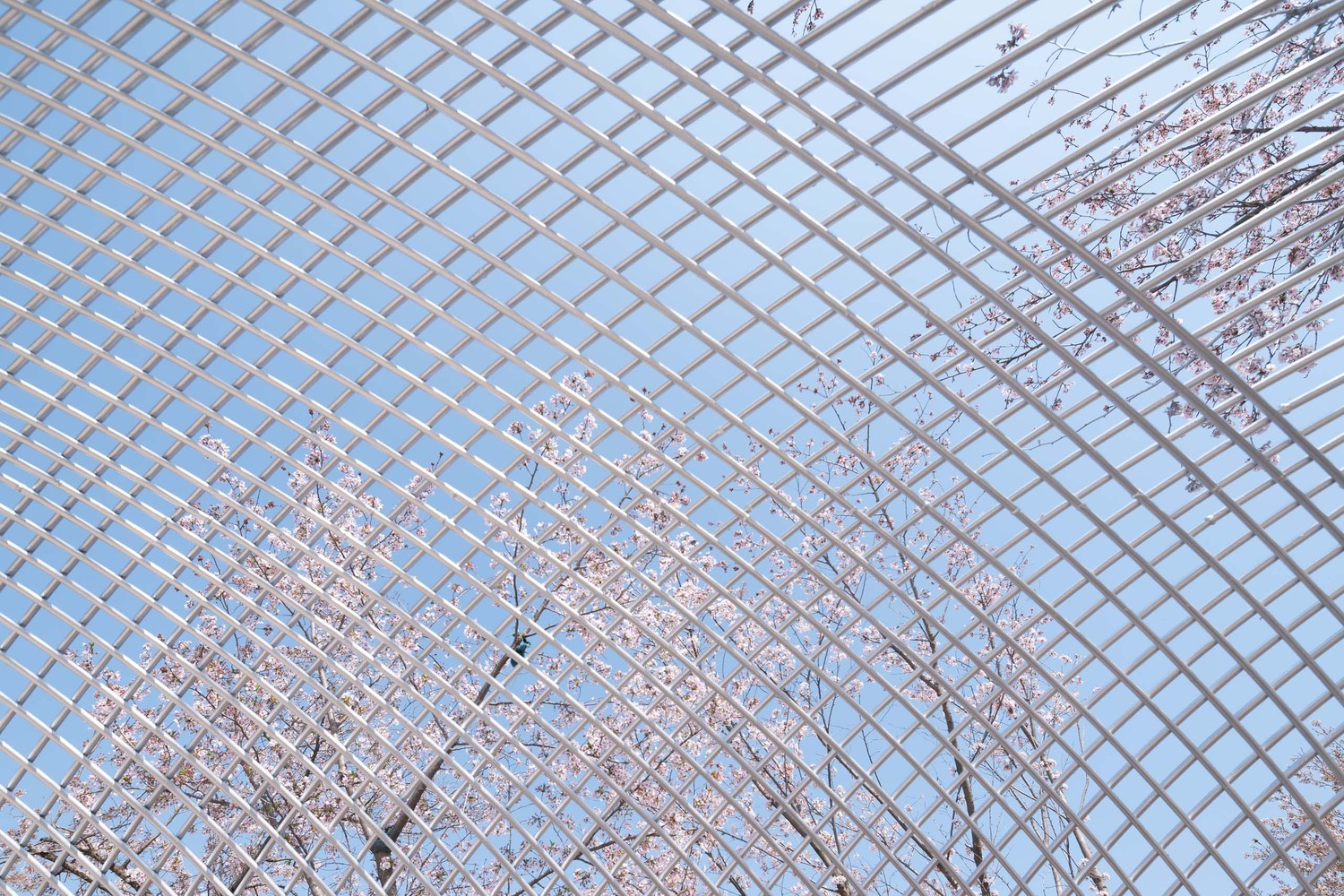

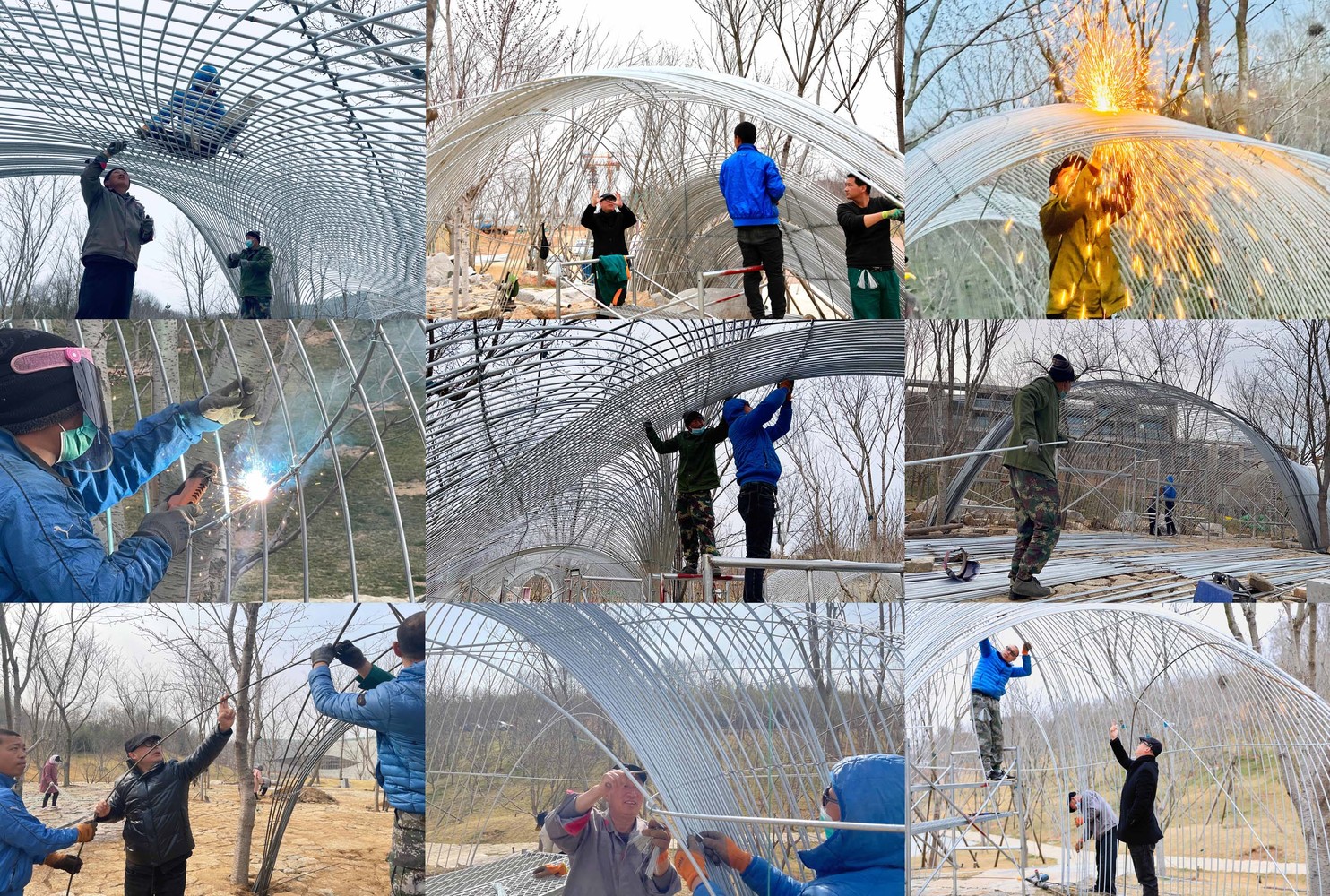

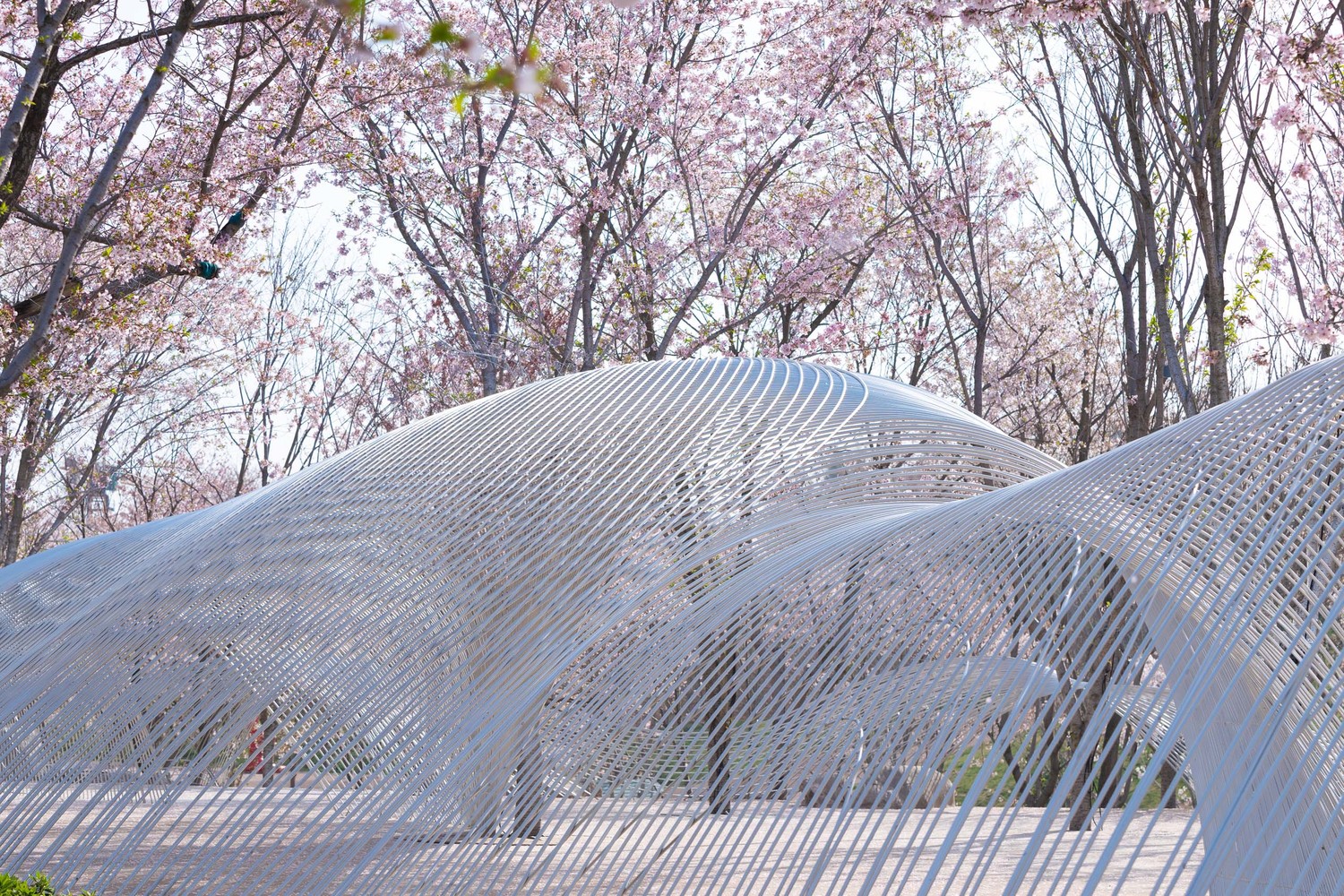

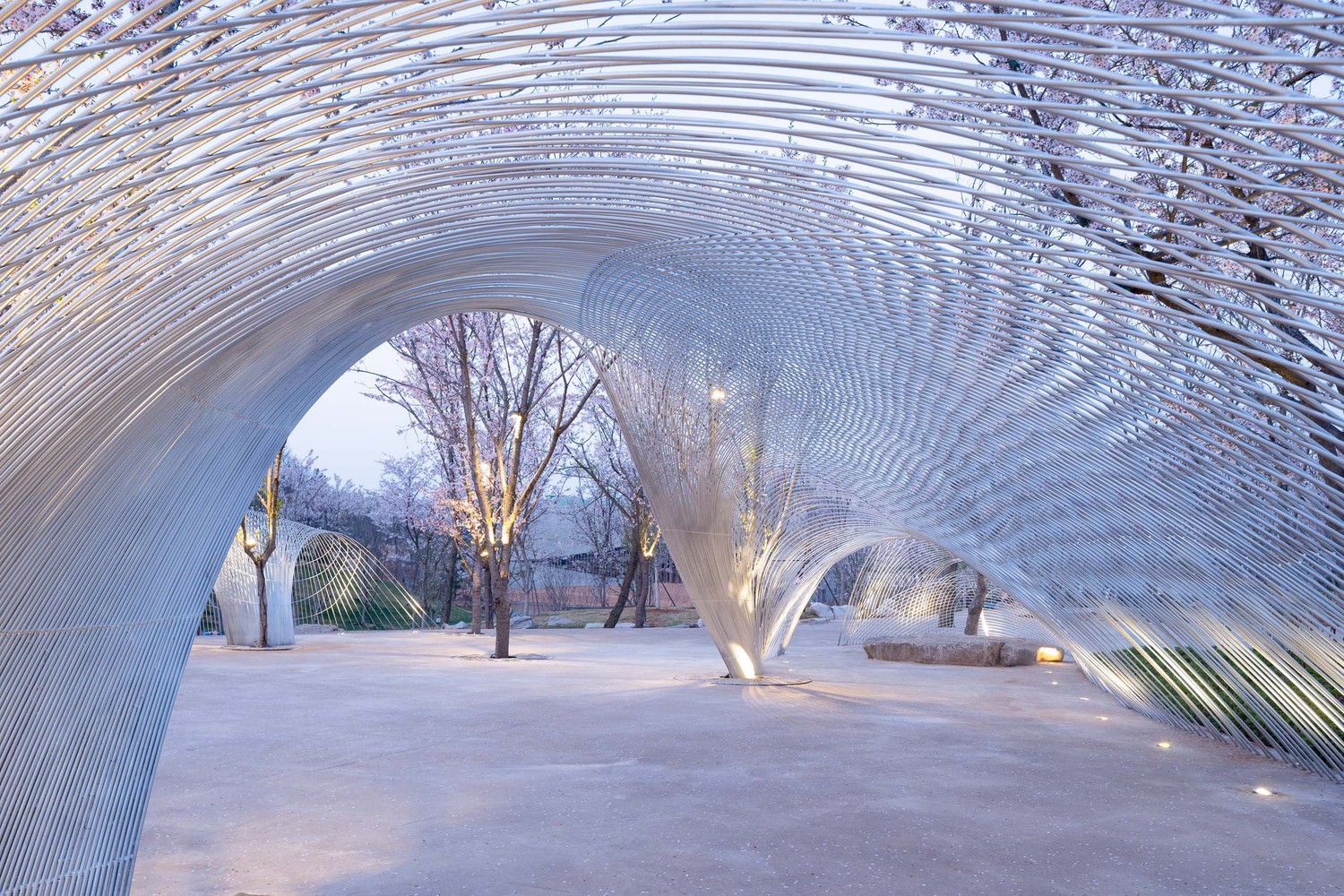

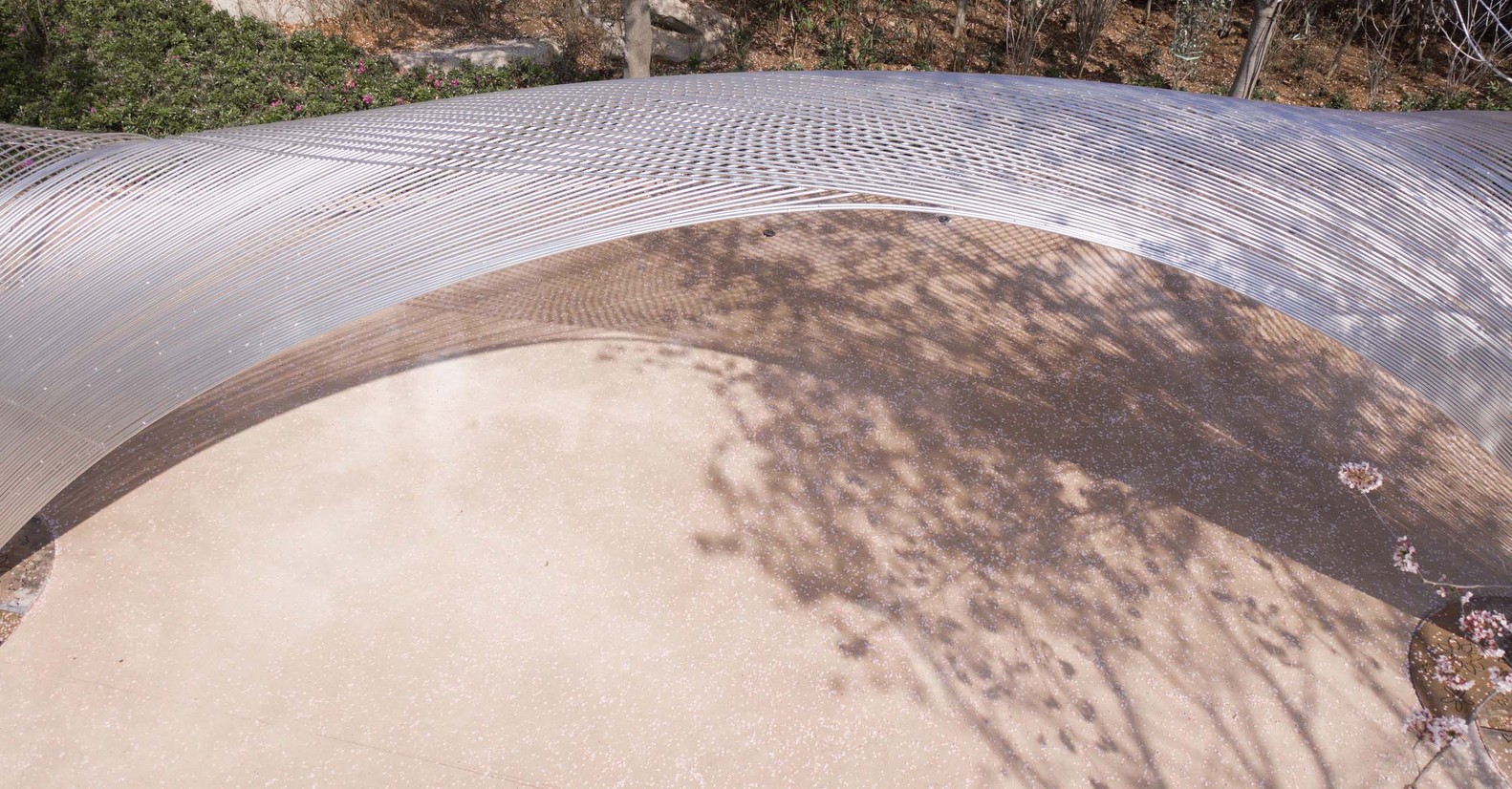

Using steel bars as the only material and weaving them into buildings by hand in three-dimensional space has high technical difficulty. The method I adopt is to make the warp first, that is, the upper and lower lines, the spacing or equal distribution of the warp, or close arrangement or gradual change, and then make the weft after the warp is completed. The weft is better to be less. It should play a role in tying the stability of the structure or interweaving with the warp into a diamond pattern, or a free and soothing wavy line. The shaping of shape and the organization of lines should first follow the stability of the structure, followed by the characteristics of steel bars. All steel bars are bent manually by craftsmen without any mechanical bending. Thirdly, follow the guidance and overall planning of beauty, and try to make the trend of each line beautiful and the shape woven is also beautiful.

---

BOUNDLESS THEATER OF EGRET BAY

RIZHAO, CHINA

Architects : Beijing Guanzhuan Landscape Planning and Design Institution
Area : 500 ㎡
Year : 2022
Photographs : Zhiyi-jianzhu New Media Studio, Xiangwei Kong & Li Wang

---
