노인주택[R+B Diseño Experimental] - HG Gerontological Home

노후주택 활용을 위한 주택 개조 붐이 한창인 가운데, HG에서 노인 안락과 안전을 위한 건물을 설계하였다.
내부에는 2.50m, 2.70m 높이의 공간이 짜여져 있어 건물 전체에 걸쳐 널찍한 느낌을 주며, 결국 HG 외부와 내부로 이어져 건물 벽의 약 85mts2에 이르는 살아있는 녹색 벽을 찾아 공기 필터와 내부 습도 와 온도 조절 역할을 한다

---

HG - Gerontological home

Bogota, Colombia

Architects: R+B Diseño Experimental

Area : 1,342㎡
Year : 2016

---



In the middle of the boom of houses adapted for the use of retirement homes, is designed HG, a building designed exclusively for the comfort and safety of the elderly.
Thus, the needs of the elderly are combined with a modern and efficient design, appealing to renewable energies and water treatment to make it environmentally friendly.
As in the other constructions of R+B Diseño Experimental, HG was designed to minimize its environmental impact, so it has a treatment plant for the reuse of gray water from sinks, showers, siphons and gardens, which are treated and reused in common areas, and for the irrigation of gardens and living green walls.
It also has solar energy for water heating, heat pumps for pool heating, LED lighting and an open design that takes full advantage of sunlight and allows a natural circulation of air in each space.

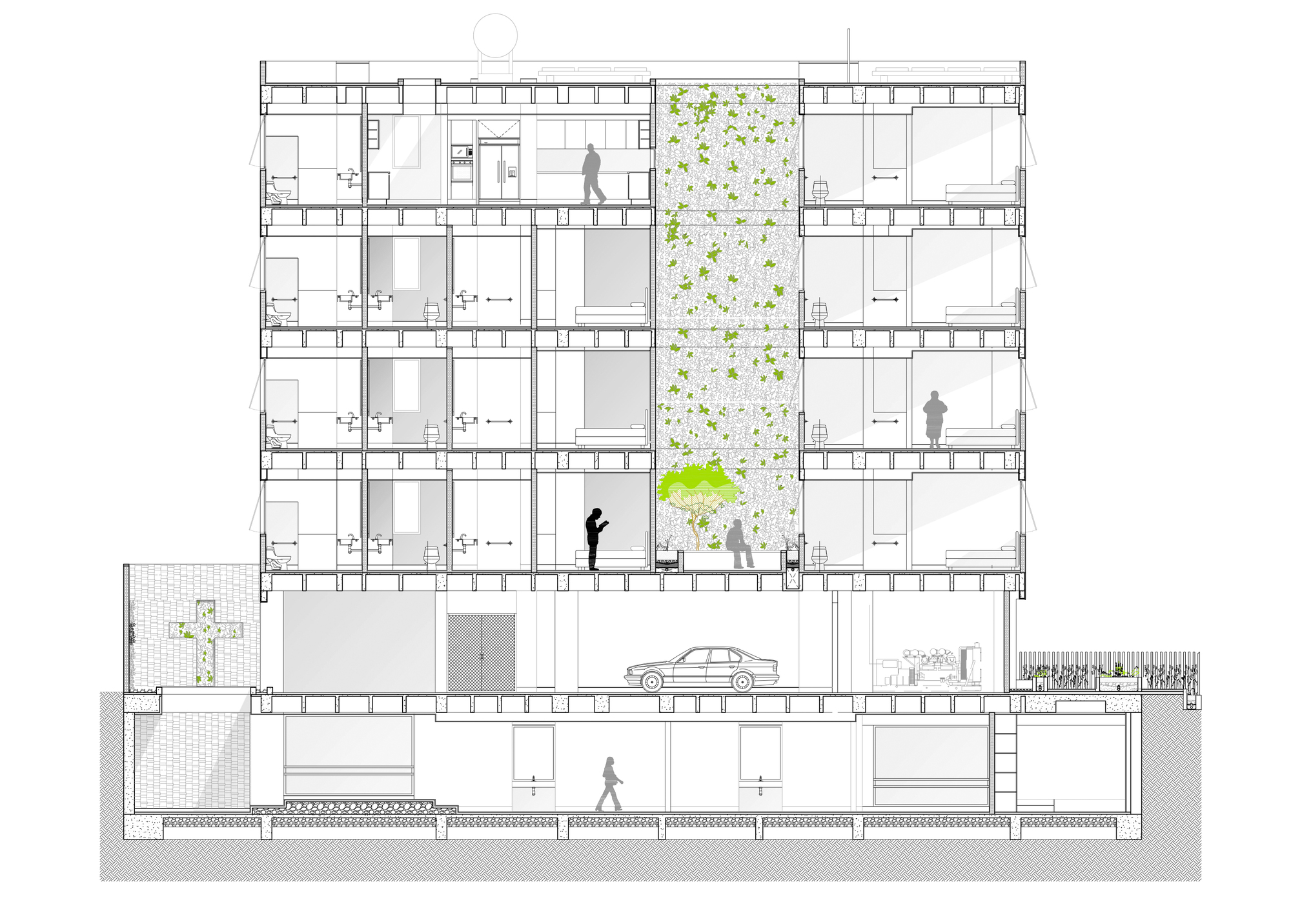

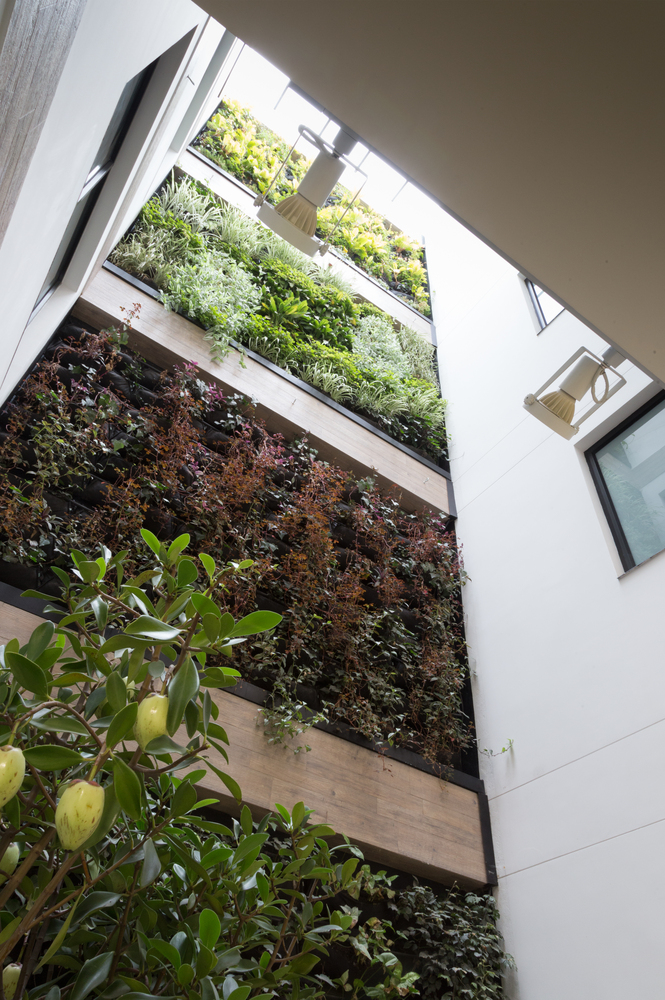

AInside, spaces are woven with heights of 2.50mts and 2.70mts, giving a feeling of spaciousness that runs throughout the building, and eventually find the living green wall, which runs both outside and inside HG and reaches about 85 mts2 of the walls of the building, serving as a natural filter of the air and regulator of the interior temperature and humidity.

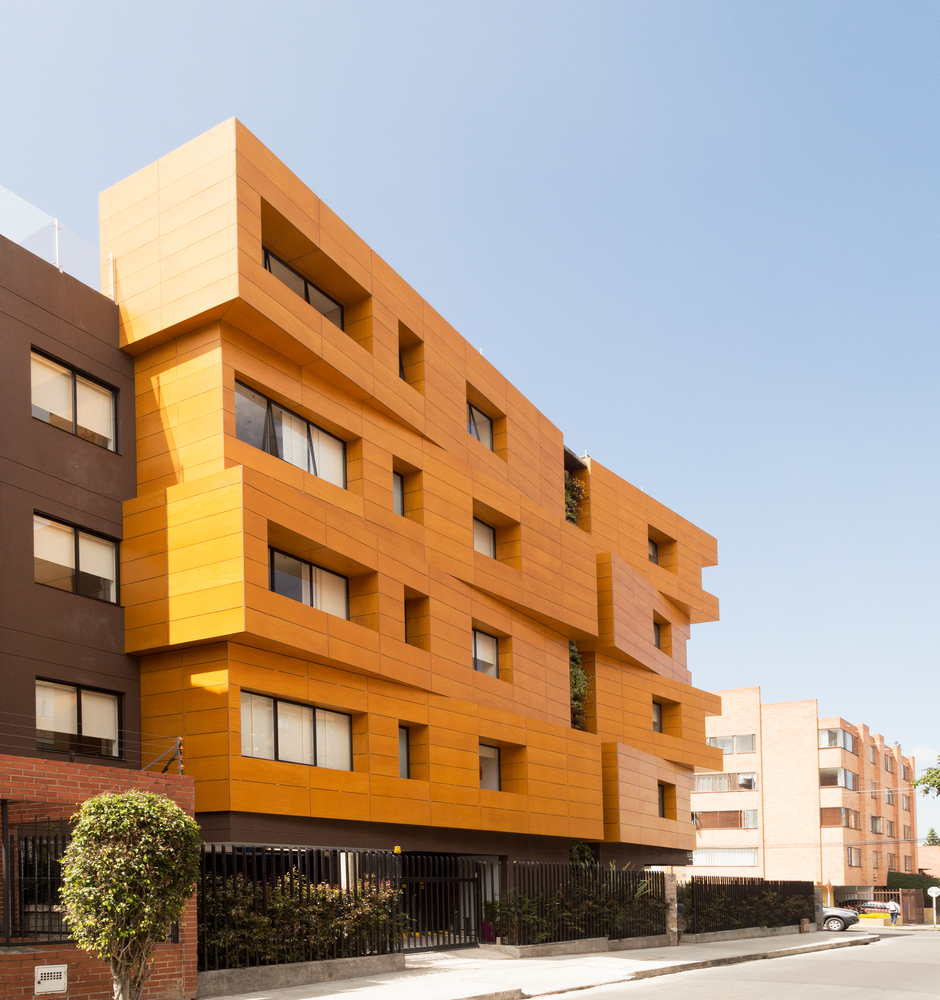

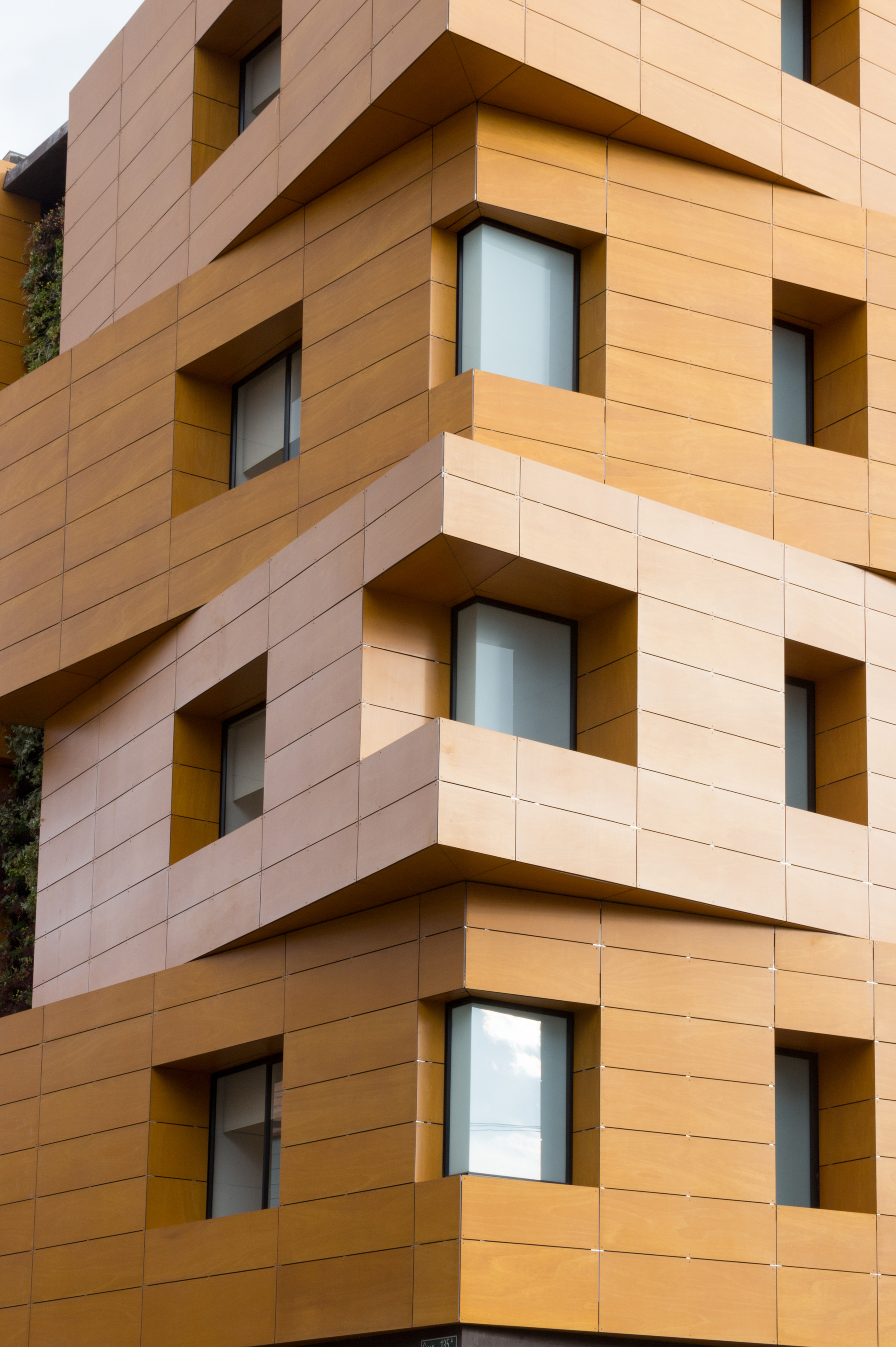

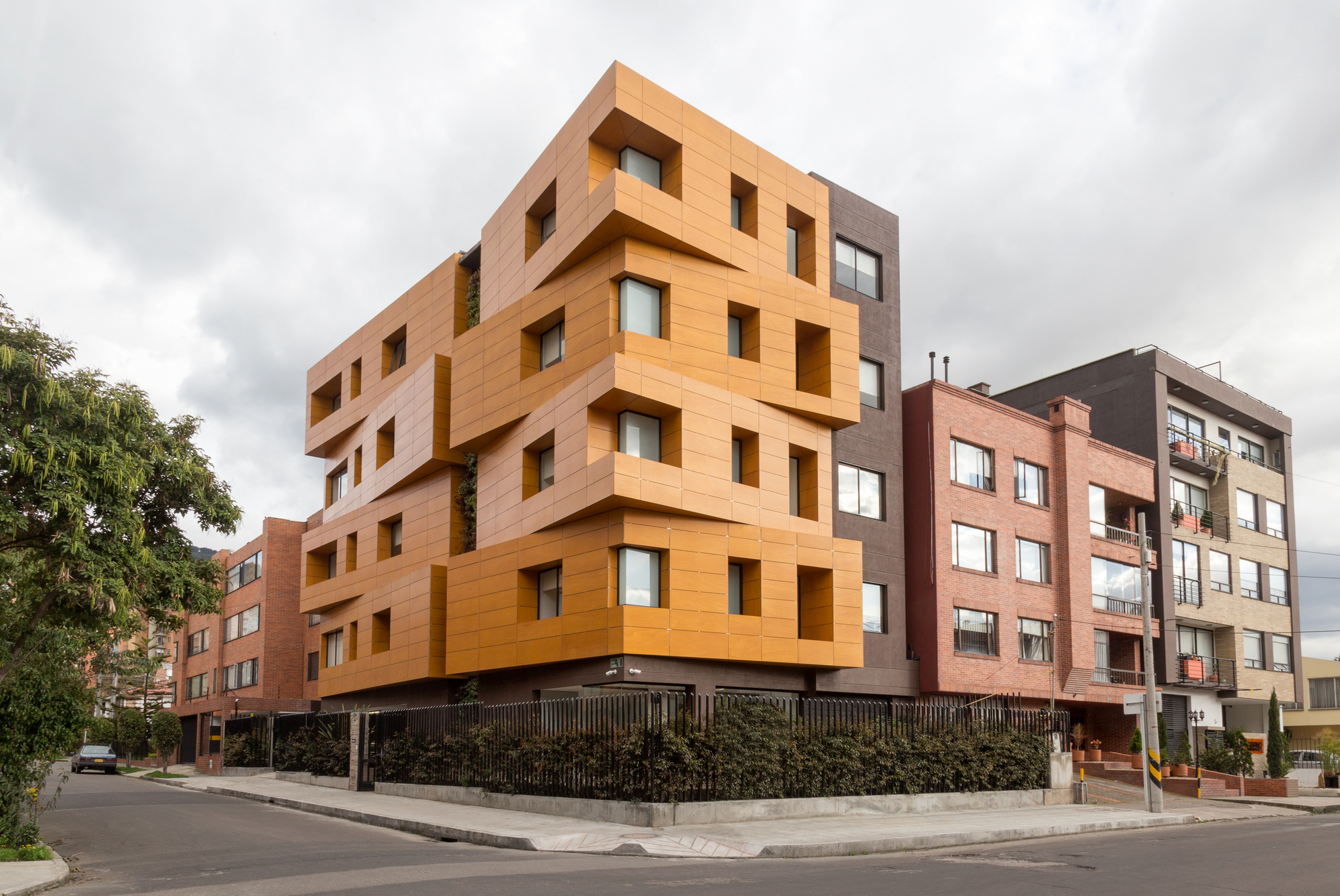

At the aesthetic level, the facade is broken to give it movement and it is crossed by a living green wall that runs vertically. It has a double facade that regulates the temperature looking for greater comfort inside. To achieve this, the panels were selected provide thermal and acoustic insulation, becoming an ideal second construction skin and taking advantage of its flexibility to create an imposing facade in the neighborhood's surroundings, an architectural reference of the sector.
The interiors of the building become points of reference for the location of its residents, having a distinctive color (both the walls and the vegetation of the interior living green wall) on each floor.
The building program includes spaces for recreation and health such as wet areas (pool and hot tub), consulting and therapy room, nurses' quarters and spaces designed to develop hydrotherapy and physical exercises, in addition to the fitness room, reading room, massages room and theater.
The kitchen, dining room, oratory, front garden and the terrace provide spaces for the development of group and outdoor activities, which. facilitate the socialization of the residents, surrounded by gardens, mirrors of water and nature.
All the rooms of the home are equipped with high end technology for communication and monitoring of the residents, and large bathrooms equipped with hydro-massage showers.
HG is a demonstration that this type of equipment is still to be explored, and it can be an amalgam of design, sustainability and efficiency.





---







from archdaily
